- Rango de flujo: 10-500LPH@50Hz/12-600LPH@60Hz
- Rango de presión: 5-10 Bar
- Potencia: 380V@50Hz en estándar, otros bajo pedido

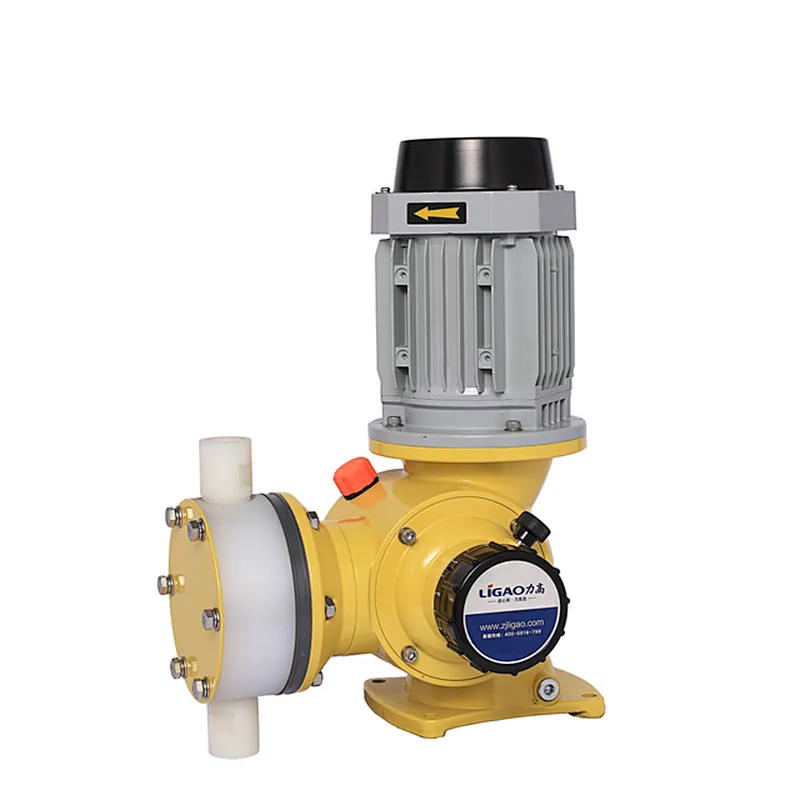

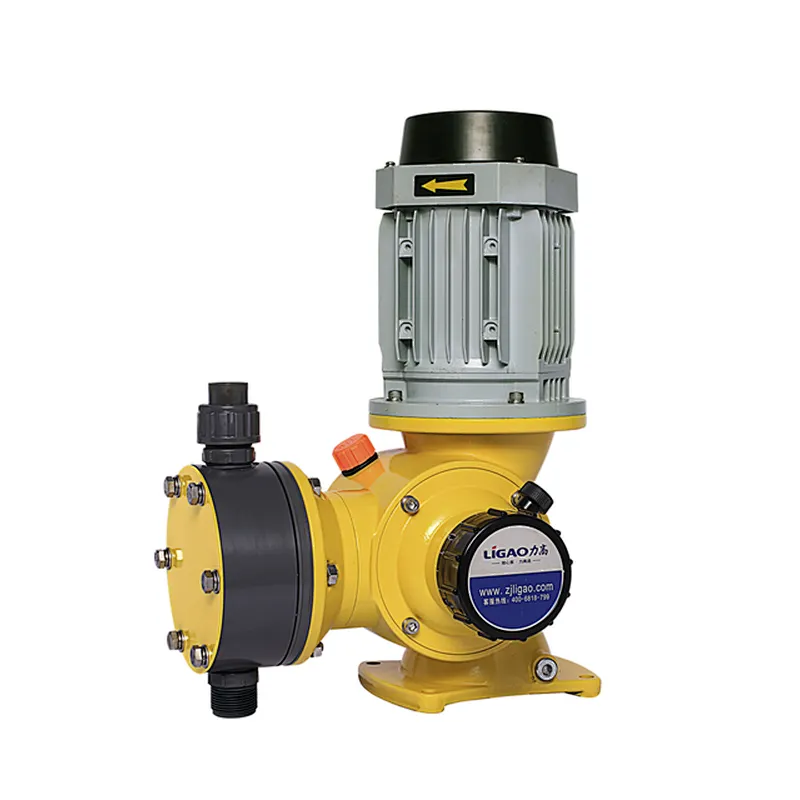

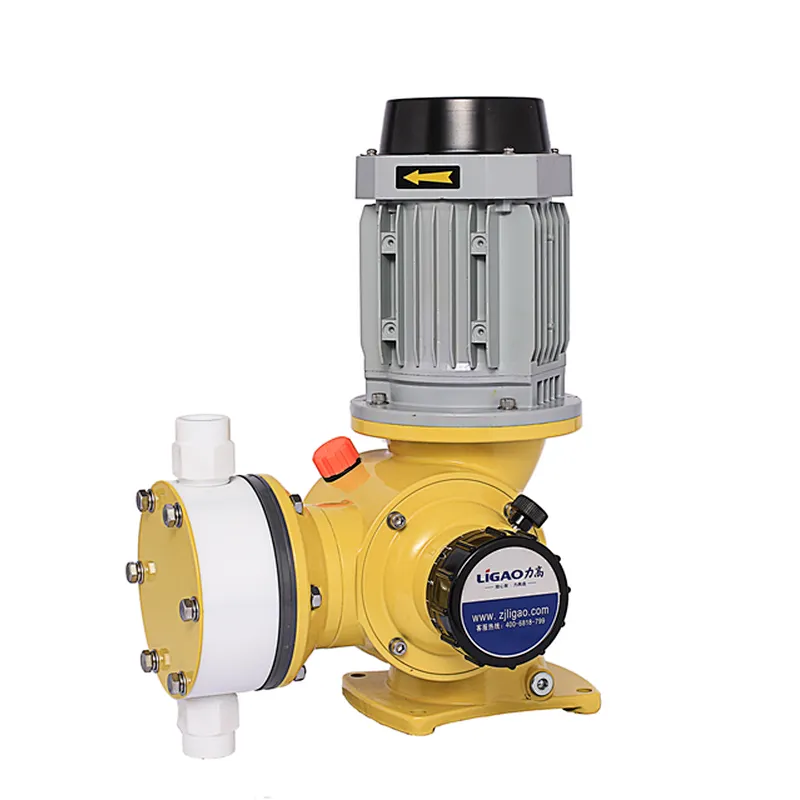

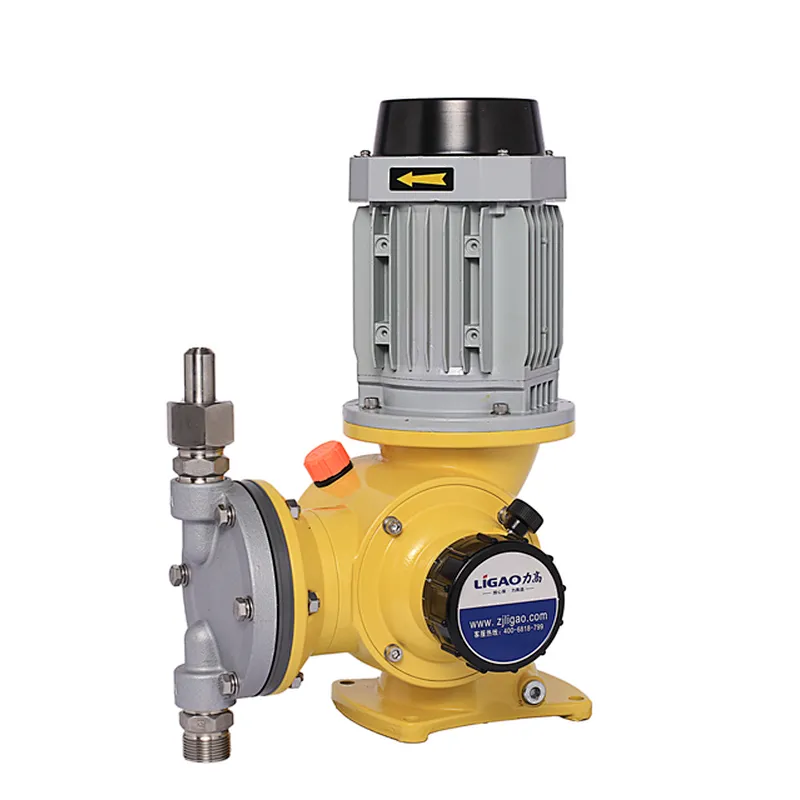

- Material: CLORURO DE POLIVINILO; PVDF; SS304; SS316
| Modeloo | 50Hz | 60Hz | Presión | Diafragma (mm） | Energía | |||||
| Caudal (LPH) | Caudal (GPH) | GDS | Caudal (GPH) | Caudal (LPH) | GDS | BAR | PSI | |||
| GM10/1.2 | 10 | 2.6 | 48 | 3.1 | 12 | 58 | 12 | 174 | 60 | 0.37KW |
| GM25/1.0 | 25 | 6.6 | 7.9 | 30 | 10 | 145 | ||||
| GM50/1.0 | 50 | 13 | 96 | 16 | 60 | 115 | 10 | 145 | ||
| GM90/0.7 | 90 | 23 | 48 | 28 | 108 | 58 | 7 | 102 | 112 | |
| GM120/0.7 | 120 | 32 | 38 | 144 | 7 | 102 | ||||
| GM170/0.7 | 170 | 45 | 96 | 54 | 204 | 115 | 7 | 102 | ||
| GM240/0.5 | 240 | 63 | 76 | 288 | 5 | 73 | ||||
| GM330/0.5 | 330 | 86 | 144 | 104 | 396 | 173 | 5 | 73 | ||
| GM400/0.5 | 400 | 105 | 126 | 480 | 5 | 73 | ||||
| GM500/0.5 | 500 | 131 | 157 | 600 | 5 | 73 | ||||
Conexión
| Modeloo | CLORURO DE POLIVINILO | PVDF | SS304/316 | |||||
| GM10-GM25 | Manguera de 6*9mm | RC1/2"F | Unión de soldadura de 8*14mm | |||||
| GM50 | Unión encolada DN15 | RC1/2"F | Unión de soldadura de 10*16mm | |||||
| GM90-GM120 | Unión encolada DN15 | RC1/2"F | Unión de soldadura de 10*16mm | |||||
| GM170-GM330 | Unión encolada DN15 | RC1/2"F | Unión de soldadura de 15*22mm | |||||
| GM400-GM500 | Unión encolada DN15 | RC3/4"F | Unión de soldadura de 15*22mm | |||||
