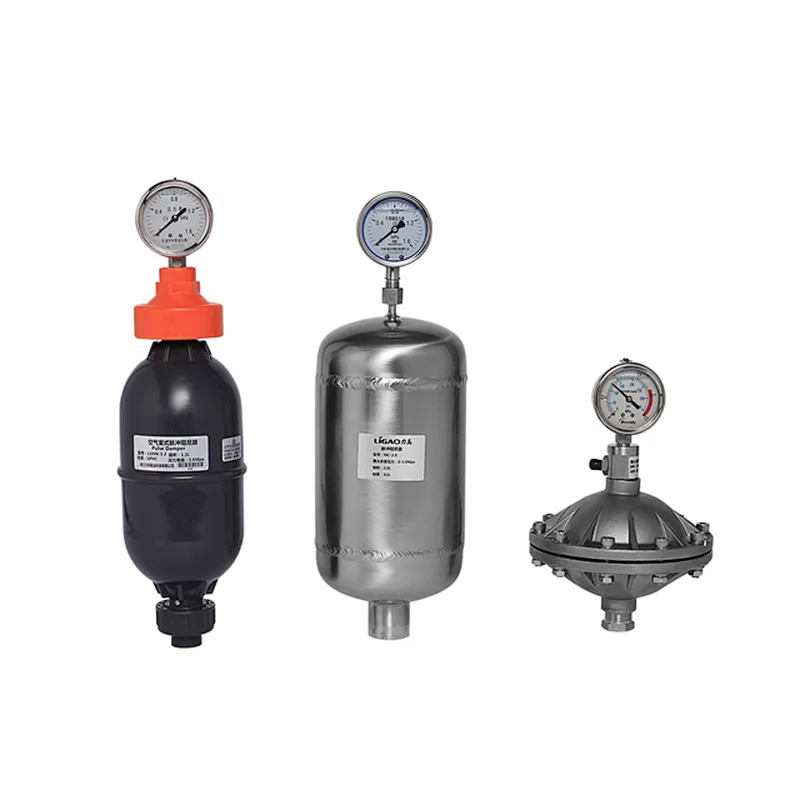

air damper

air damper

Categories: Pump Accessories
Model NO.: Air Damper

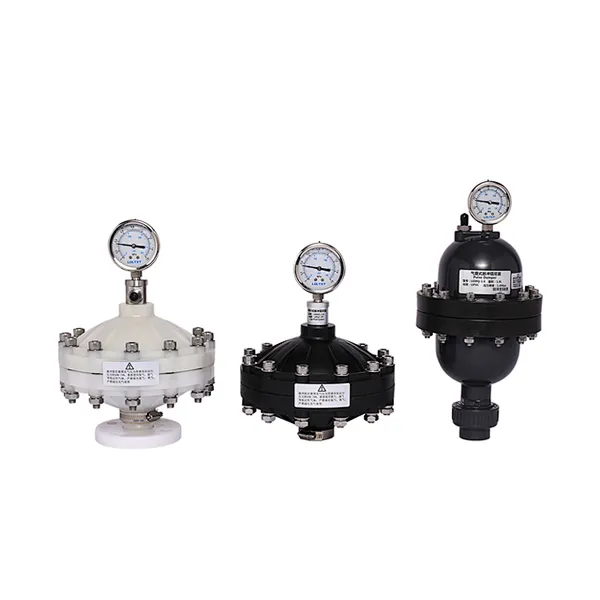

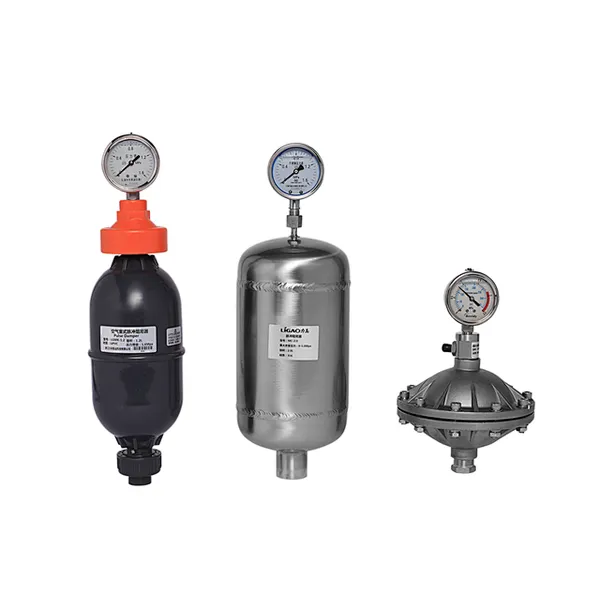

Air Damper: It is a empty container with pressure gauge on the top. It works by the air in the damper chamber. When the air in the damper is dissovled into the liquid, the efficency of the damper will be reduced. It is recommended to drain the liquid out of damper. The size air pulsation damper should be 26 times of each metering pump stroke capacity at least.

Capacity

PVC

SS304

SS316L

Carbon Steel

0.5L

DN15

DN15

DN15

DN15

1.0L

DN20

DN20

DN20

DN20

1.5L

DN25

DN25

DN25

DN25

2.0L

DN25

DN25

DN25

DN25

3.0L

DN32

DN32

DN32

DN32

4.0L

DN40

DN40

DN40

DN40

5.0L

DN40

DN40

DN40

DN40


Pressue range:  0-1Mpa (PVC)

                            0-5Mpa(SS304,SS316L,Carbon Steel)

                           0-20Mpa(SS304,SS316L,Carbon Steel)

Connection type: Female thread ,Flange
