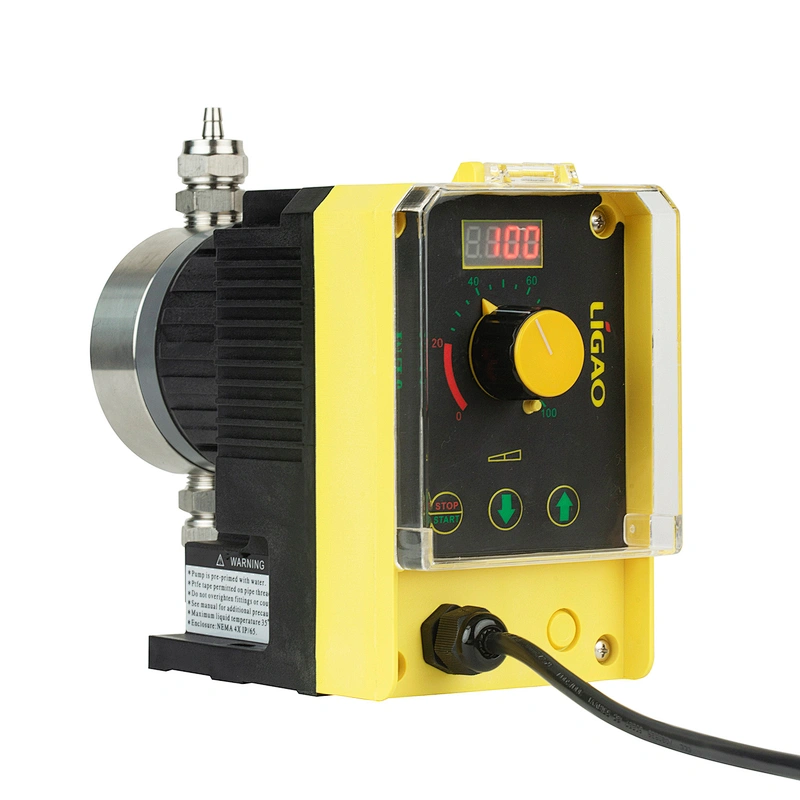

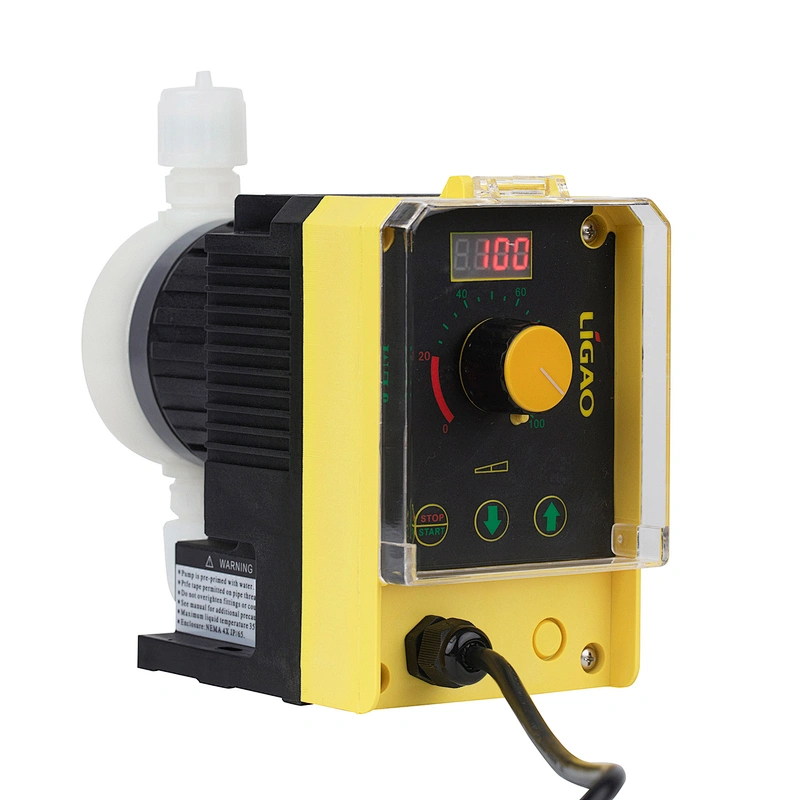

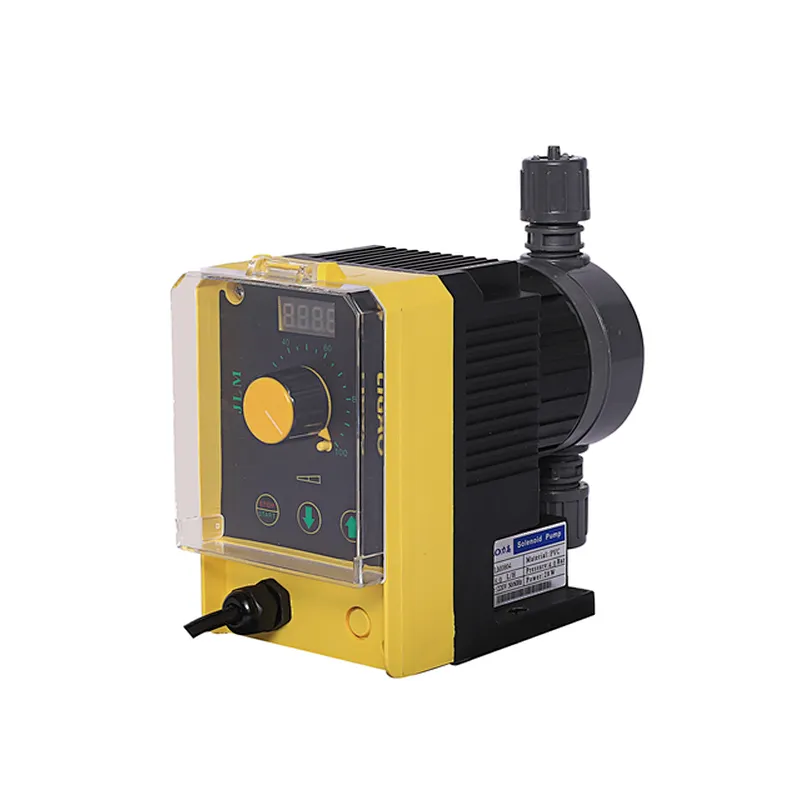

JLMseries solenoid diaphragm metering pump is effective and relable digital pump. The precise dosing is controled by both the stroke length and stroke speed manually. The max available capacities ranges from 1.0l/h to 15l/h at a back pressure of 10 bars to 1 bar.
Typical Applications:
1. Potable water treatment: Metering of disinfectants
2. Cooling circuits: Metering of corrosion inhibitors and biocides
3. Waste water treatment: Metering of flocculants
4. Paper industry: Metering of additives
5. Plastics production: Metering of additives
Features and benifits
1. Manual flow control by stroke length and stroke speed;
2. Wear-free solenoid driving with no bearing;
3. Compact modular design( liquid end, drive and electronic board are modular, easy for replacement) ;
4. Intelligent display the stroke speed in percentage;
5. Check valve assemblies are with two balls and are designed for easy maintenance;
6. Accessories are included: hose,injection valve,foot valve,ceramic weight;
Product Characteristics
¨ Wear-free solenoid driving with no bearing.
¨ Adjustment both by stroke length and stroke speed.
¨ Intelligent LED display the stroke speed in percentage.
¨ Power: 110/ 220V 50~60Hz.
¨Material: PVC; PVDF; SS304; SS316
Parameter Table
Material Construction
Product Characteristics
¨ Wear-free solenoid driving with no bearing.
¨ Adjustment both by stroke length and stroke speed.
¨ Intelligent LED display the stroke speed in percentage.
¨ Power: 110/ 220V 50~60Hz.
¨Material: PVC; PVDF; SS304; SS316
Parameter Table
| Model | Flow (LPH) | Pressure (BAR) | Flow (GPH) | Pressure (PSI) | SPM | Diaphragm (mm） | Power (W) | Connection |
| JLM0110 | 1.0 | 10 | 0.26 | 145 | 80 | 34 | 30 | 5*8mm PE hose |
| JLM0210 | 2.0 | 10 | 0.52 | 145 | 140 | |||
| JLM0408 | 4.0 | 8.0 | 1.0 | 116 | 180 | |||
| JLM0505 | 5.0 | 5.0 | 1.3 | 73 | 140 | 41 | ||
| JLM0804 | 8.0 | 4.0 | 2.1 | 58 | 170 | |||
| JLM1003 | 10 | 3.0 | 2.6 | 44 | 130 | 52 | ||
| JLM1202 | 12 | 2.0 | 3.1 | 29 | 150 | |||
| JLM1502 | 15 | 2.0 | 3.9 | 29 | 160 | |||
| JLM2001 | 20 | 1.0 | 5.2 | 15 | 180 |
Material Construction
| Material | PVC | PVDF | SS304 | SS316 | ||||
| Diaphragm | PTFE | PTFE | PTFE | PTFE | ||||
| Valve Body | PVC | PVDF | SS304 | SS316 | ||||
| Valve Ball | Ceramic | Ceramic | Ceramic | Ceramic | ||||
| Vavle Seat | PTFE | PTFE | SS304 | SS316 | ||||
| O Ring | Viton | Viton | PTFE | PTFE | ||||
