Key features:
JBB Series Liquid Metering Pump is compact and simple design.
JBB Series Liquid Metering Pump has multilayer compostie PTFE diaphragm, long service life.
JBB Series Liquid Metering Pump has reinforced plate after the diaphragm.
JBB Series Liquid Metering Pump flow adjustment by the micrometer manually.

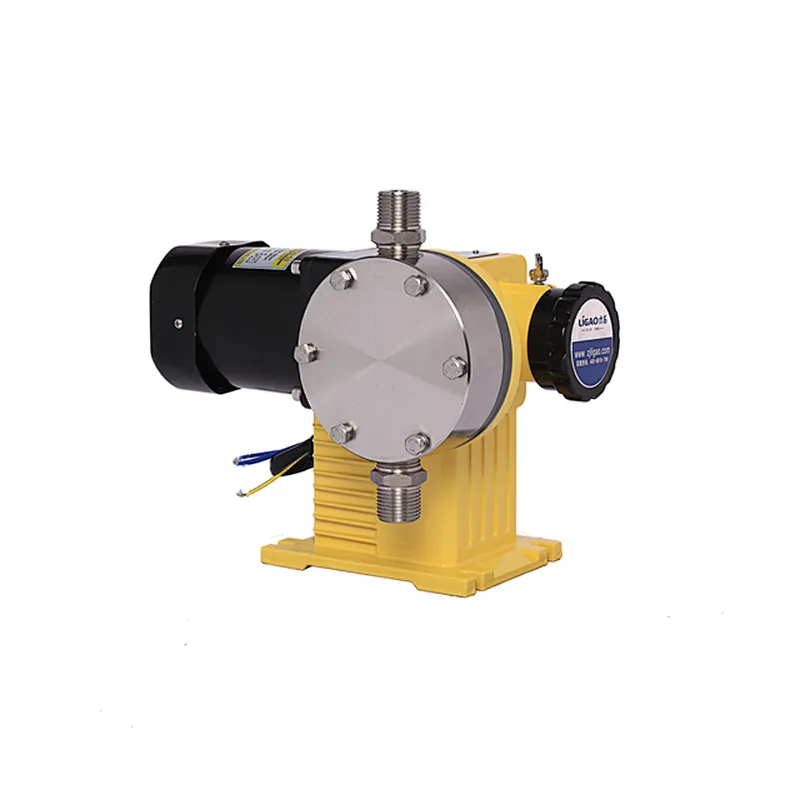

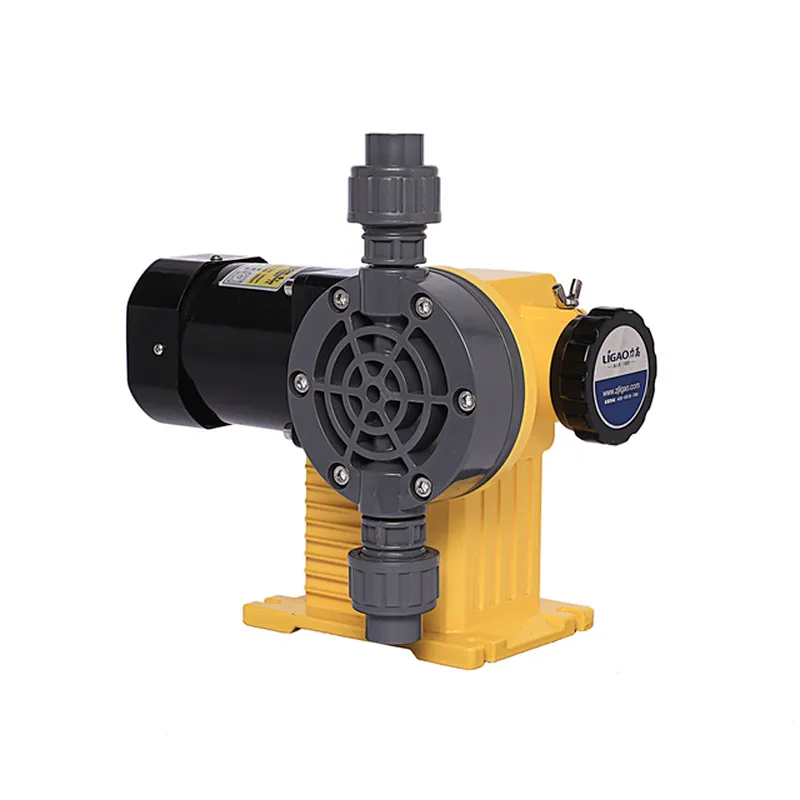

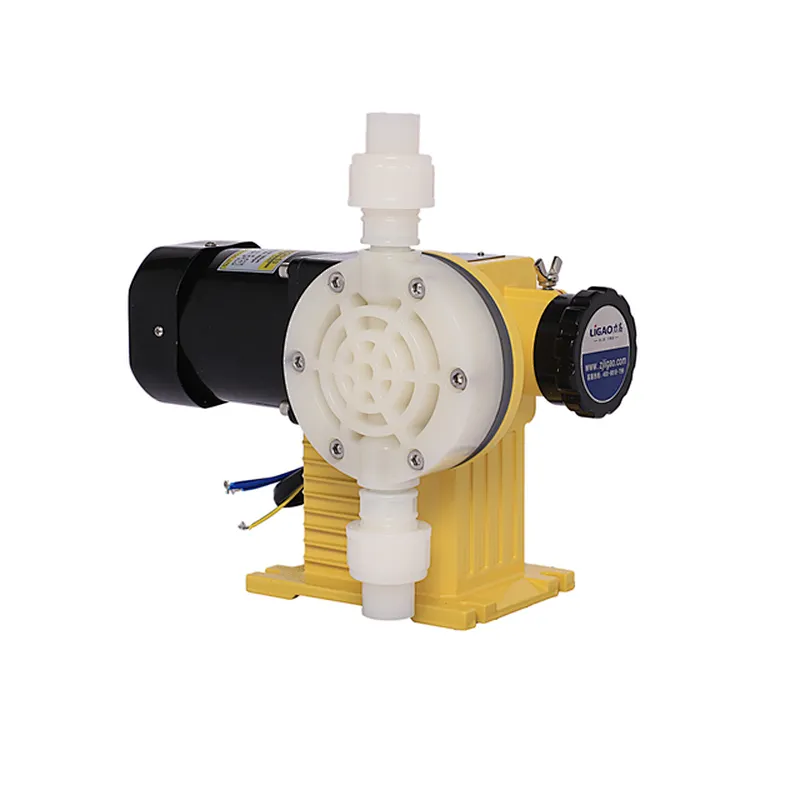

JBB Series Liquid Metering Pump liquid end materials can be PVC,PTFE,SS304, SS316.
JBB Series Liquid Metering Pump fluid max temperture: 70℃(158℉）
- Optional features:
- DC powered motor 12V or 24V
Parameter Table Model 50Hz 60Hz Pressure Diaphragm
(mm）Power Flow
(LPH)Flow
(GPH)SPM Flow
(GPH)Flow
(LPH)SPM BAR PSI JBB15/1.0 15 3.9 100 4.7 18 120 10 145 60 60W JBB25/1.0 25 6.6 7.9 30 10 145 JBB40/0.7 40 10 150 12 48 180 7 102 JBB60/0.6 60 16 100 19 72 120 6 87 84 JBB80/0.5 80 21 25 96 5 73 JBB100/0.4 100 26 150 32 120 180 4 58 JBB130/0.4 130 34 41 156 4 58
