diaphragm damper

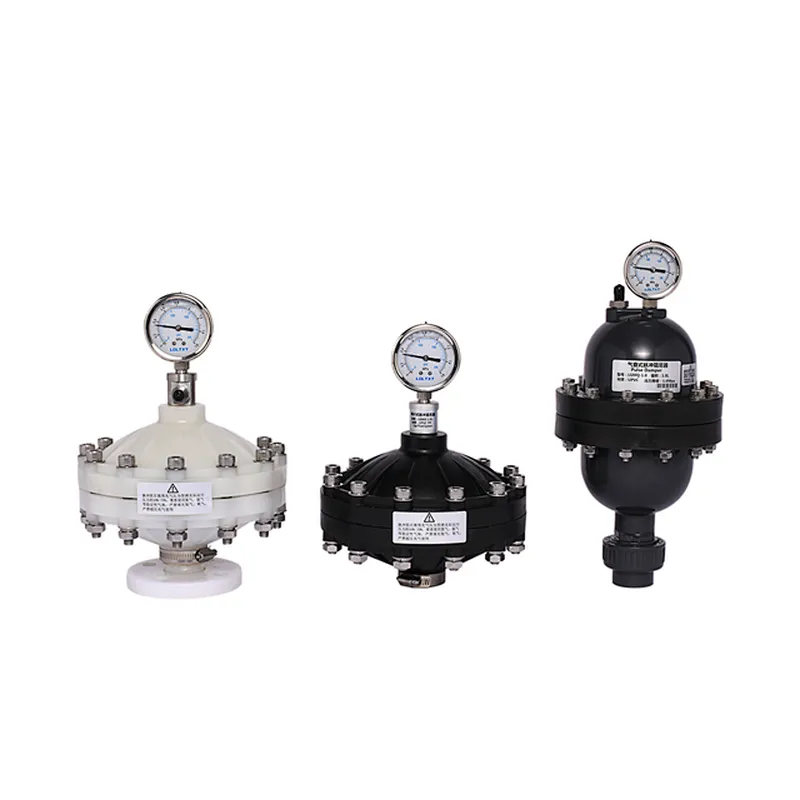

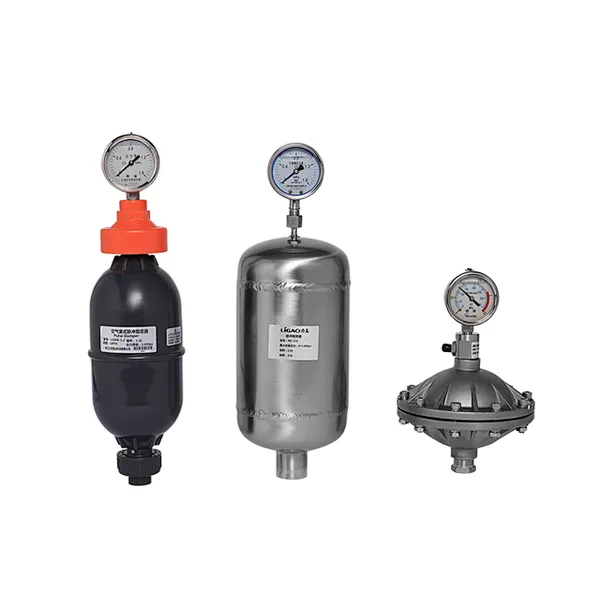

diaphragm damper /bladder damper

Categories: Pump Accessories
Model NO.: Diaphragm Damper

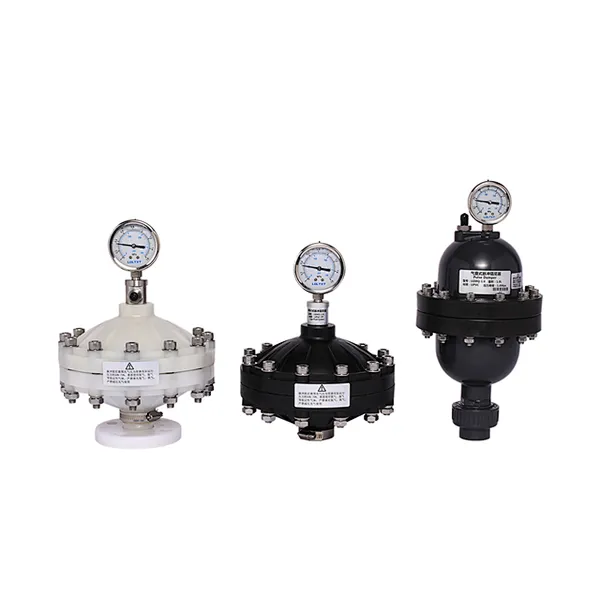

Diaphragm Pulsation Damper:It contains a composite PTFE diaphragm that separates an inert pressurized gas (air or nitrogen) from the pumped liquid. The size diaphragm pulsation damper should be 10 times of each metering pump stroke capacity at least.

Capacity

PVC

SS304

SS316L

Carbon Steel

PVDF

F Thread

Flange

F Thread

Flange

F Thread

Flange

F Thread

Flange

F Thread

0.35L

DN15

DN15

DN15

DN15

DN15

DN15

DN15

DN15

DN15

0.6L

DN20

DN20

DN20

DN20

DN20

DN20

DN20

DN20

DN20

1.0L

DN25

DN25

DN25

DN25

DN25

DN25

****

****

DN25

2.0L

DN32

DN32

DN32

DN32

DN32

DN32

****

****

DN32

4.0L

****

DN50

DN40

DN40

DN40

DN40

****

****

****

6.0L

****

****

DN50

DN50

DN50

DN50

****

****

****

12L

****

****

DN65

DN65

DN65

DN65

****

****

****

Diaphragm Pulsation Damper pressue range: 0-1Mpa (PVC;PVDF)

                                                                           0-2.5Mpa(SS304,SS316L,Carbon Steel)

Bladder Pulsation Damper:It contains a flexible bladder that separates an inert pressurized gas (air or nitrogen) from the pumped liquid. The size diaphragm pulsation damper should be 10 times of each metering pump stroke capacity at least.

Low Pressure Bladder pulsation Damper

CapacityPVCSS304SS316LCarbon Steel
0.4LRC 1/2"RC 1/2"RC 1/2"RC 1/2"
0.6LRC3/4’’RC3/4’’RC3/4’’RC3/4’’
1.0LRC1’’RC1’’RC1’’RC1’’
1.6LRC1-1/4’’RC1-1/4’’RC1-1/4’’RC1-1/4’’
2.5LRC1-1/4’’RC1-1/4’’RC1-1/4’’RC1-1/4’’
4.0LRC1-1/2’’RC1-1/2’’RC1-1/2’’RC1-1/2’’
6.3LRC1-1/2’’RC1-1/2’’RC1-1/2’’RC1-1/2’’
10L****RC2’’RC2’’RC2’’
16L****RC2-1/2’’RC2-1/2’’RC2-1/2’’
Max Pressure1Mpa2.5Mpa or 5Mpa

High Pressure Bladder pulsation Damper

CapacitySS304SS316LCarbon Steel
0.4LM27*2M27*2M27*2
0.6LM27*2M27*2M27*2
1.0LM27*2M27*2M27*2
1.6LM42*2M42*2M42*2
2.5LM42*2M42*2M42*2
4.0LM42*2M42*2M42*2
6.3LM42*2M42*2M42*2
Max Pressure Options

10Mpa /20Mpa/31.5Mpa

High pressure bladder pulsation dapmer connection only metric thread.Connection adapter is available changing to flange, BSP or NPT thread.

Bladder materials : NBR, HNBR, IIR, EPDM, Viton
