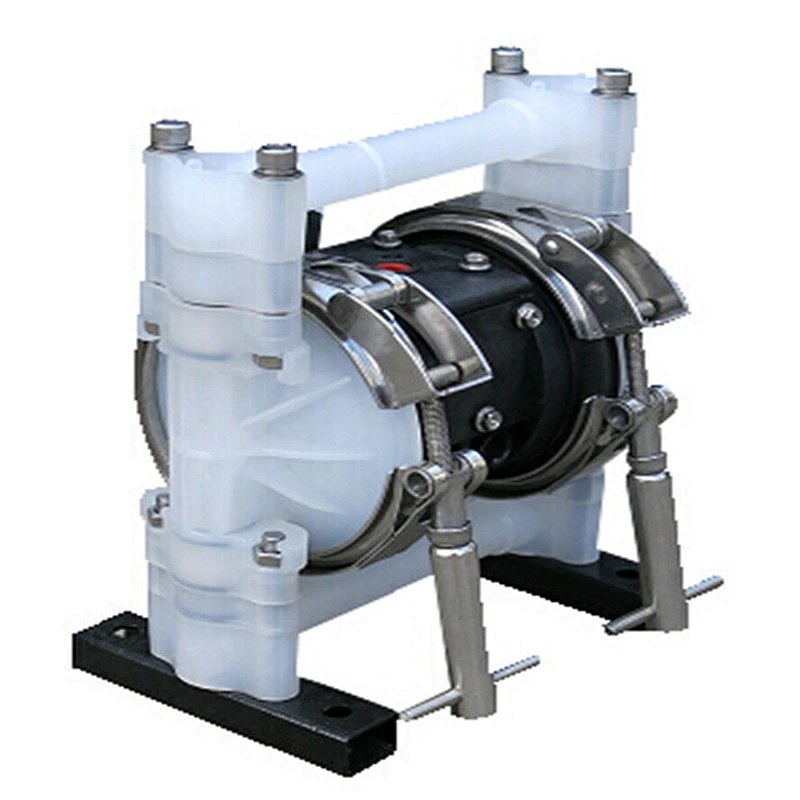

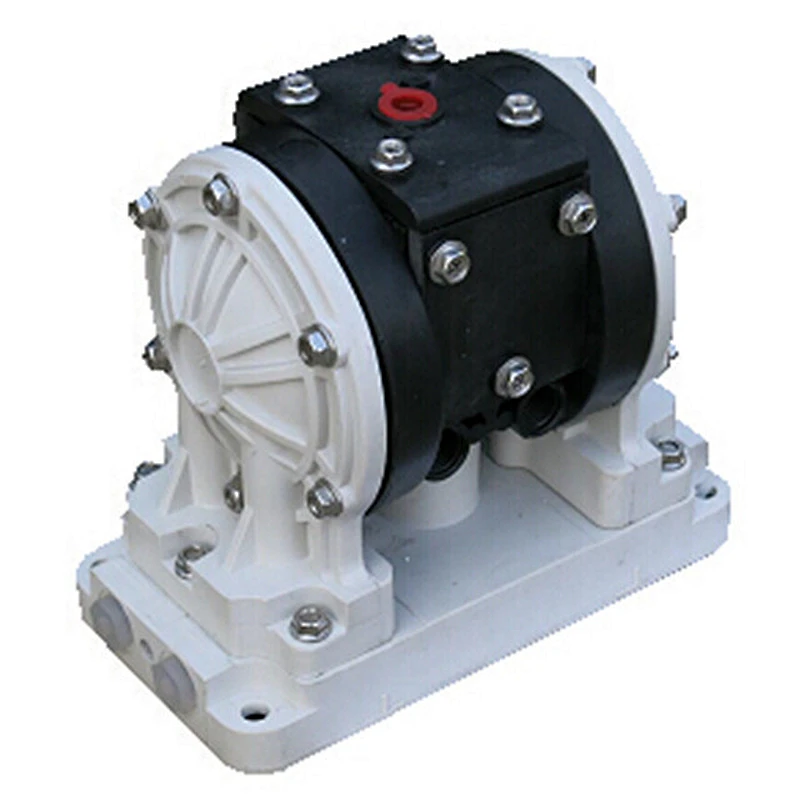

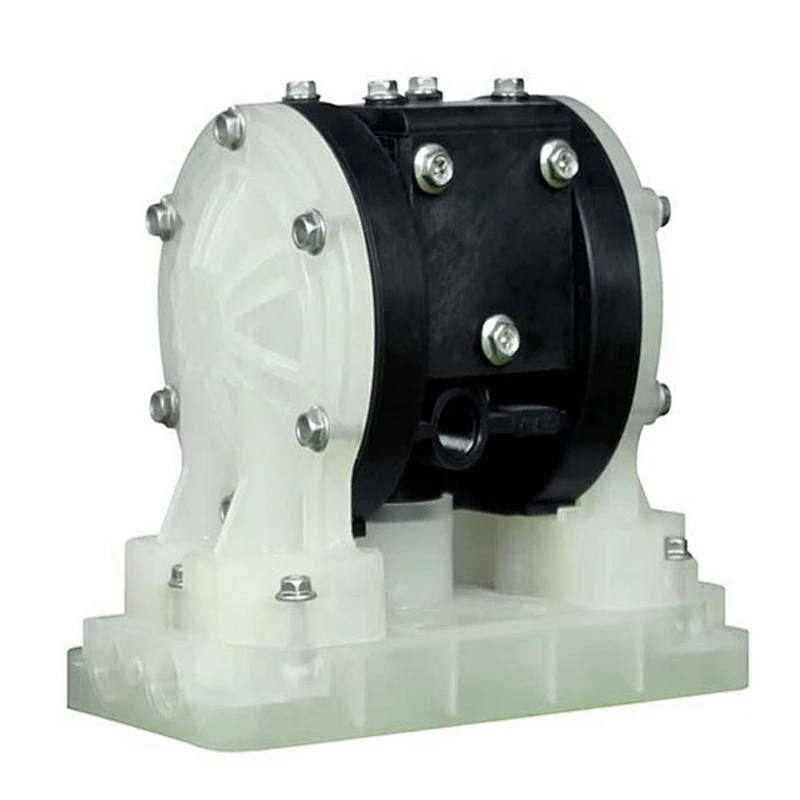

JQ06 air operated pump

Categories: Air Diaphragm Pump
Model NO.: JQ06

JQ06 air operated  pump
Features:

• JQ06 air operated  pump is with 1/4 in (6.35 mm) end-porting

• No seals to leak or fail for JQ06 air operated  pump
• JQ06 air operated  pump is quiet running — less than 85 dB with easy-to-use remote muffler capability for even lower noise levels
• JQ06 air operated  pump is high flow rates in a small, portable package
• External controller for optional remote operation is available for JQ06 air operated  pump.

Technical Specifications:

Max Working Pressure100psi(0.7Mpa ,7bar)
Max Flow Rate4.5gpm(17lpm)
Max Reciprocating SpeedDry running320cpm; Wet running250cpm
Max Suction Height (Dry Sucking)3m
Max Permitted Grain1.5mm
Max.Air Consumption7.0scfm(3.5L/s
Air Inlet size1/4in.(f)
Air Outlet size1/4in.(f)
Fluid Inlet size1/4in.(f)
Fluid Outlet size1/4in.(f)
Weight

 PP pump 1.1kg
