JQ40 stainless steel diaphragm pump

Categories: Air Diaphragm Pump
Model NO.: JQ40

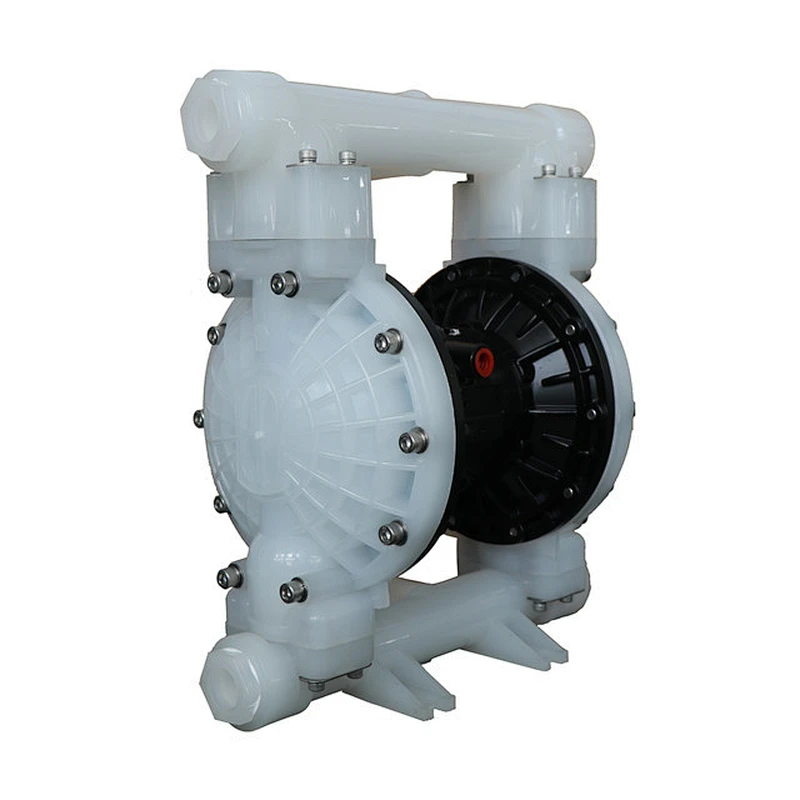

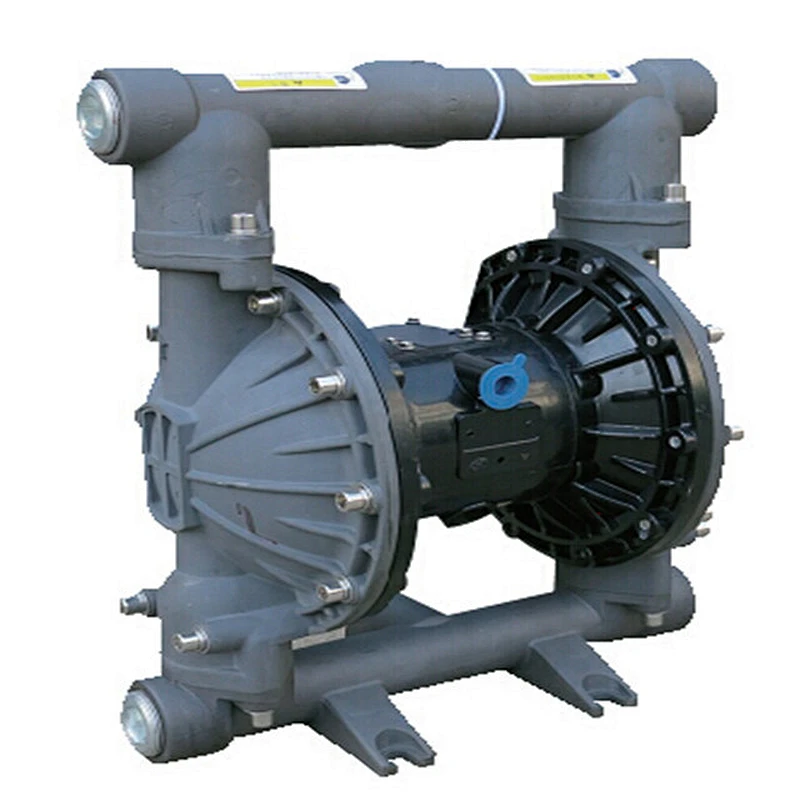

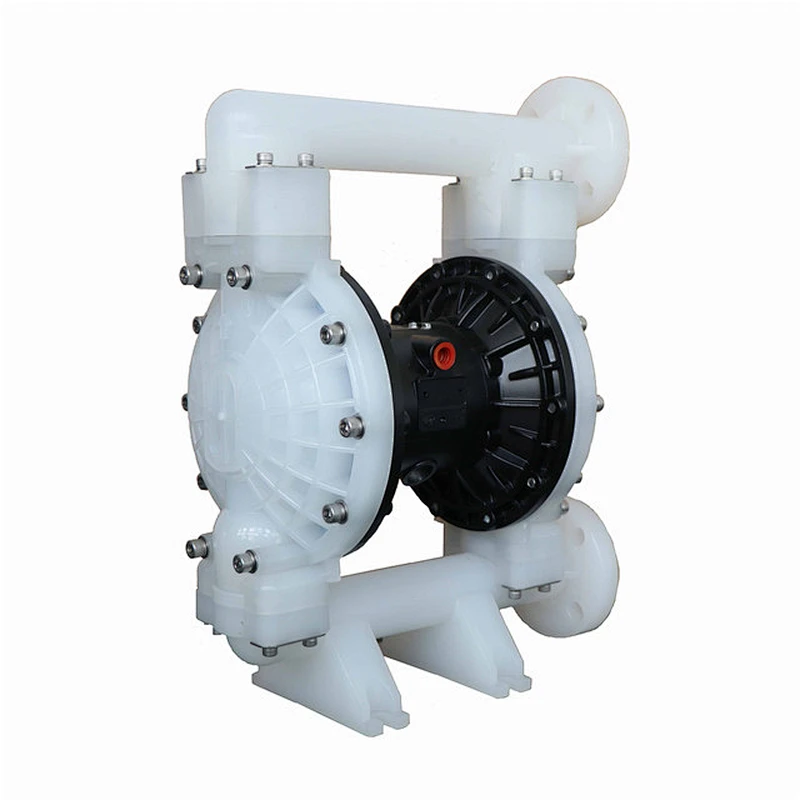

JQ40 stainless steel diaphragm pump
Features:

• JQ40 stainless steel diaphragm pump is with 1-1/2 inch (38.1 mm) end-porting
• JQ40 stainless steel diaphragm pump is high flow – 100 gpm (378 lpm) in a compact, portable size
• JQ40 stainless steel diaphragm pump fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• JQ40 stainless steel diaphragm pump is high-reliability closed center air valve is online serviceable
• JQ40 stainless steel diaphragm pump is lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation

Technical Specifications:

Max Working Pressure120psi(0.84Mpa ,8.4bar)
Max Flow Rate118 gpm(446 lpm)
Max Reciprocating Speed200cpm
Max Suction Height (Dry Sucking)5m
Max Permitted Grain5mm
Max.Air Consumption80scfm(40L/s)
Air Inlet size1/2 in.npt(f)
Air Outlet size1/2 in.npt(f)
Fluid Inlet size11/2 in.npt(f)
Fluid Outlet size11/2 in.npt(f)
Weight

PVDF Pump 20g/PP pump 16kg

Aluminum pump16kg; Stainless Steel 29kg

Ductile Iton 33kg
