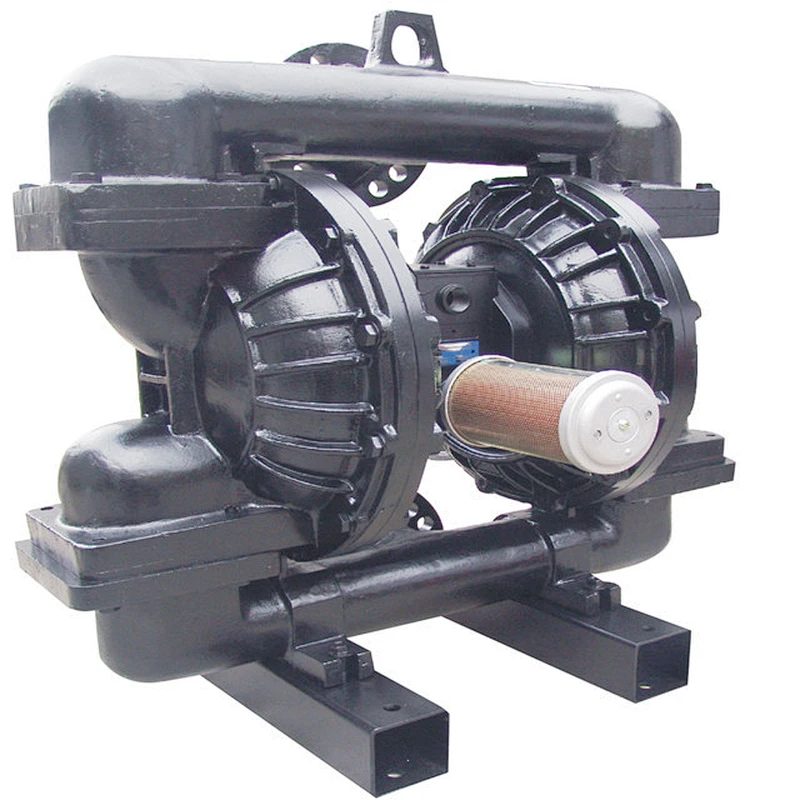

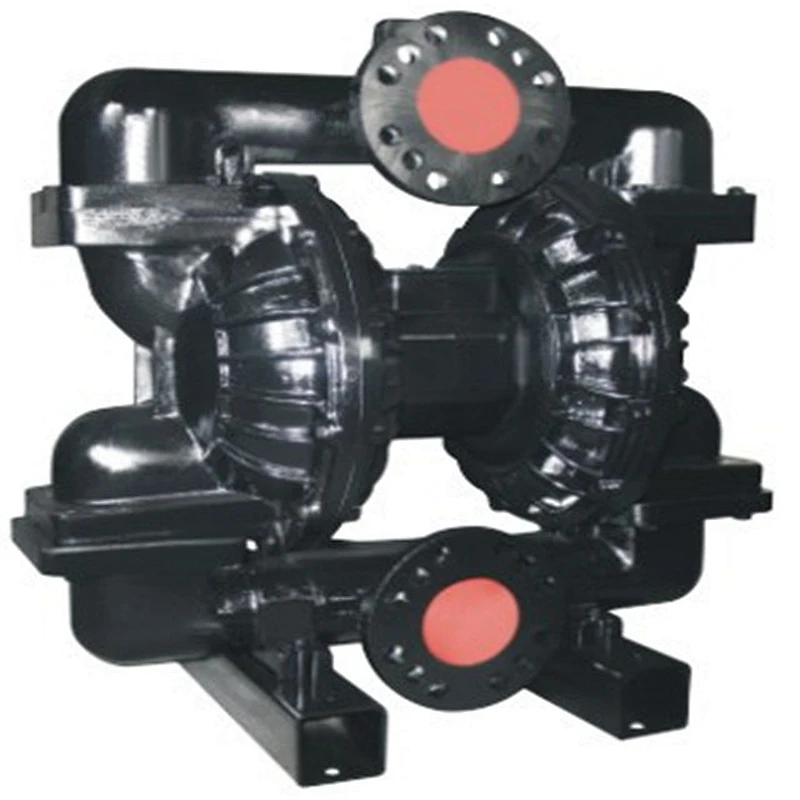

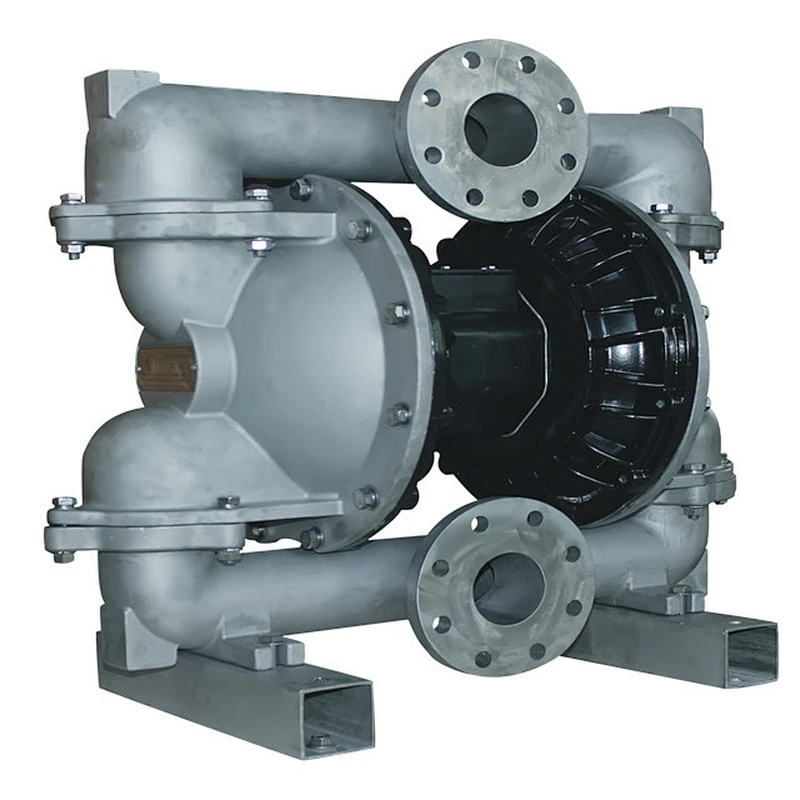

JQ80 air operated diaphragm pump

Categories: Air Diaphragm Pump
Model NO.: JQ80
JQ80 diaphragm pump 3 inch
Features:

• JQ80 air operated diaphragm pump is with 3 inch (76.2 mm) ANSI center-porting that is internally threaded 3 npt or bspt
• JQ80 air operated diaphragm pump is bolted leak-free, flanged connections — no clamp bands used
• JQ80 air operated diaphragm pump large flow paths for high viscosities
• JQ80 air operated diaphragm pump is easy air valve maintenance
• Heavy-duty construction
• Fluid flow up to 275 gpm (1040 lpm)

Technical Specifications:

Max Working Pressure120psi(0.84Mpa ,8.4bar)
Max Flow Rate275 gpm(1041 lpm)
Max Reciprocating Speed135cpm
Max Suction Height (Dry Sucking)5m
Max Permitted Grain9.4mm
Max.Air Consumption180scfm(90L/s)
Air Inlet size3/4 in.npt(f)
Air Outlet size1in.npt(f)
Fluid Inlet size3 in.npt(f)
Fluid Outlet size3 in.npt(f)
Weight

PP pump 66kg

Aluminum pump77kg

Stainless Steel 110kg

Ductile Iton 180kg
