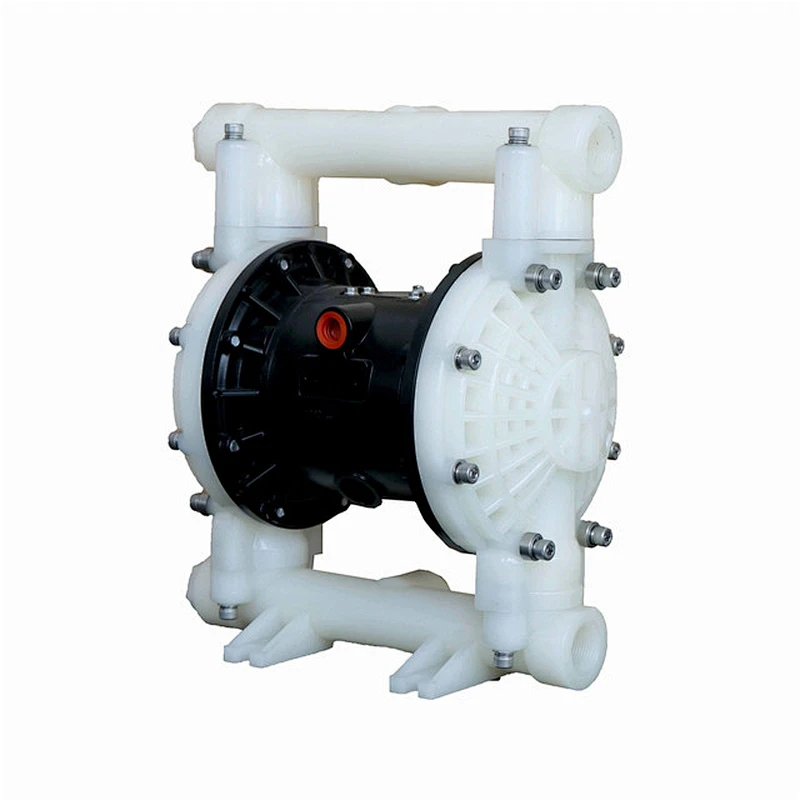

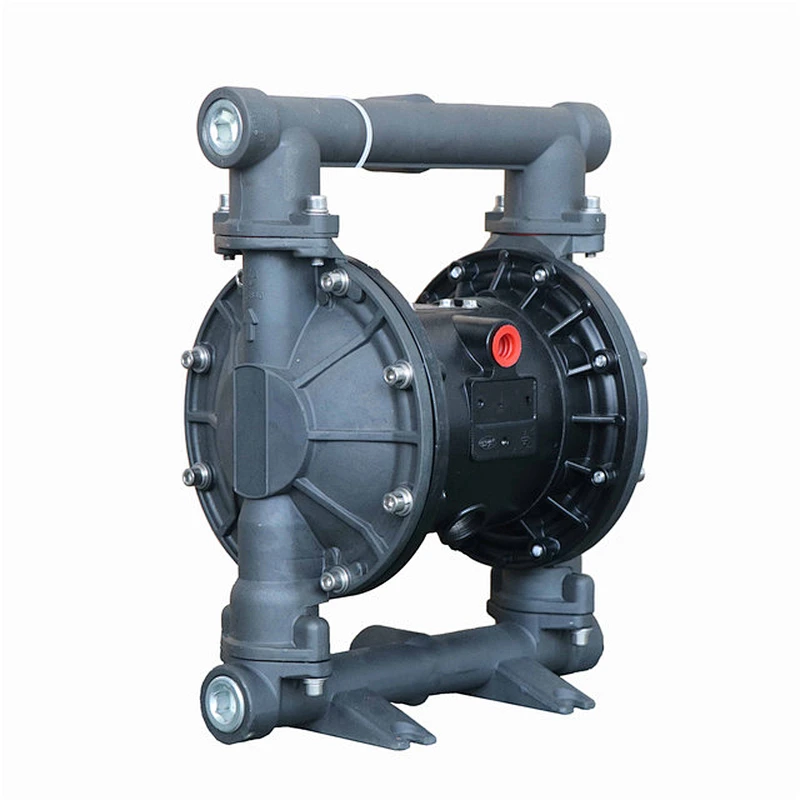

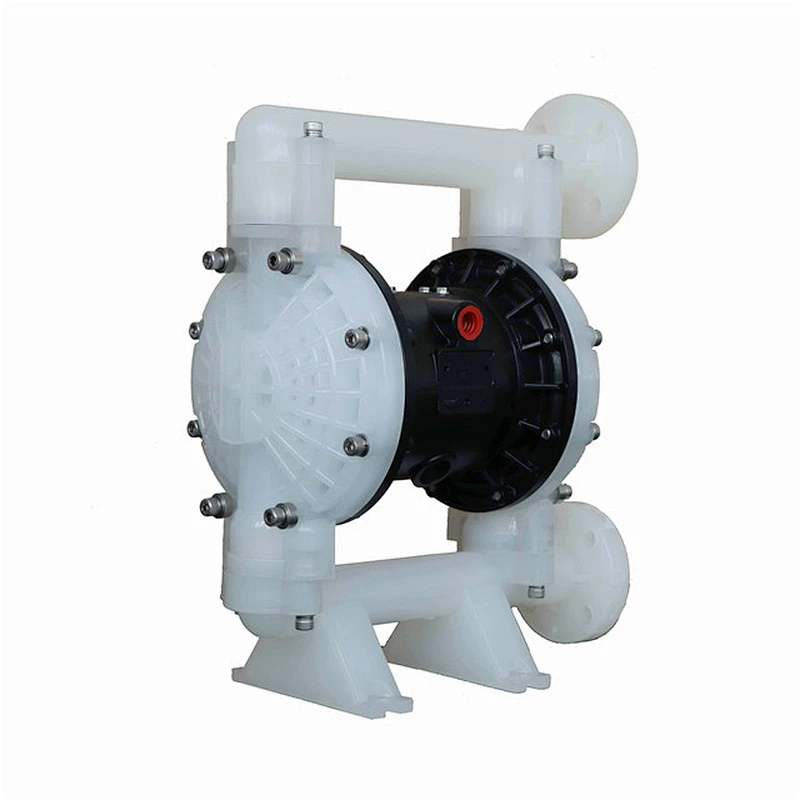

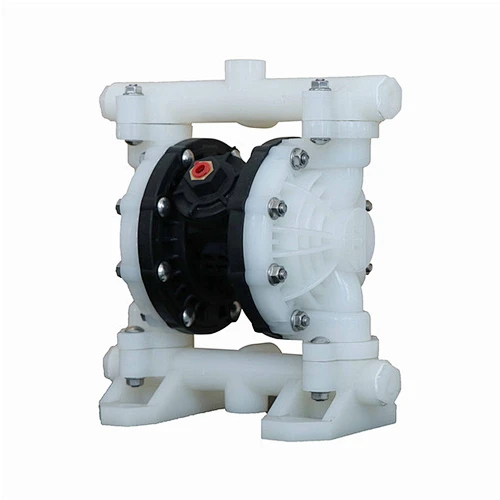

JQ25 Pneumatic diaphragm pump

Categories: Air Diaphragm Pump
Model NO.: JQ25
JQ25 Pneumatic diaphragm pump
Features:

• JQ25 Pneumatic diaphragm pump is with1 inch (25.4 mm) end-porting
 • No seals to leak or fail for JQ25 Pneumatic diaphragm pump
• JQ25 Pneumatic diaphragm pump is quiet running — less than 85 dB with easy-to-use remote muffler capability for even lower noise levels
•JQ25 Pneumatic diaphragm pump is high flow rates in a small, portable package
• External controller for optional remote operation is available for JQ25 Pneumatic diaphragm pump.

Technical Specifications:

Max Working Pressure120psi(0.84Mpa ,8.4bar)
Max Flow Rate40 gpm(150 lpm)
Max Reciprocating Speed276cpm
Max Suction Height (Dry Sucking)5.48m
Max Permitted Grain4mm
Max.Air Consumption45scfm(22.5L/s)
Air Inlet size1/2 in.npt(f)
Air Outlet size1/2 in.npt(f)
Fluid Inlet size1 in.npt(f)
Fluid Outlet size1 in.npt(f)
Weight

PVDF Pump 10.0kg/PP pump 8.0kg

Aluminum pump 8.2kg; Stainless Steel 15kg
