plunger dosing pump

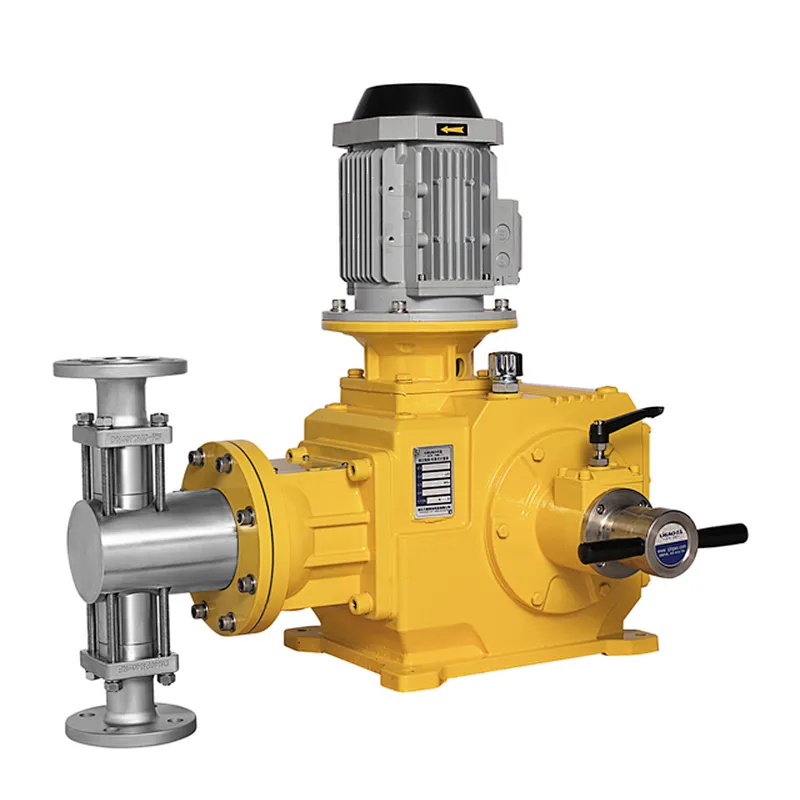

JPD plunger dosing pump

Categories: Metering Pump
Model NO.: JPD
JPD plunger dosing pump
Main Features
  • JPD serial plunger dosing pump max pressue can be up to 50Mpa
  • JPD serial plunger dosing pump  presicion error wihtin 1%
  • JPD serial plunger dosing pump max visocity can up to 2000cps
  • JPD serial plunger dosing pump Plunger can adopt ceramic plunger
  • JPD serial plunger dosing pump can with jackets
  • JPD serial plunger dosing pump can be equited with auto stroke controller
Main Parameter
  •  JPD serial plunger dosing pump flow range: 30-3720LPH@50Hz/36-4464LPH@60Hz
  • JPD serial plunger dosing pump pressure range: 1-500 Bar
  • JPD serial plunger dosing pump power:  3kw/4kw IEC100 B5 (4 pole) Motor
  • JPD serial plunger dosing pump wetted parts material: SS304; SS316, others on request
Parameter Table
Model50Hz60HzPressureMPaPiston SizeStroke
length
 (mm)
Connection
Flow
Rate
(L/H)
Pump
Speed
(SPM)
Flow
Rate
(L/H)
Pump
Speed
(SPM)
3KW4KWDia
 (mm)
JPD30/50309636115 50/1250DN10
union for welding
JPD55/ (50/40)5566405016
JPD85/ (35/25)85102253520
JPD135/ (22/16)135162162225DN15 FlangeHG/T20615 TG
JPD170/ (17/12)170204121728
JPD225/ (13/9)22527091332
JPD320/ (9/6.8)3203846.8938
JPD390/ (8/5.6)3904685.6842DN25 Flange
(HG/T20615 TG)
JPD450/ (7/4.8)4505404.8745
JPD555/ (5.6/4.0)55566645.650
JPD675/ (4.7/3.4)6758103.44.755
JPD805/ (4.0/2.8)8059662.8460
JPD945/ (3.3/2.3)94511342.33.365
JPD1100/ (2.8/2.0)1100132022.870DN40 Flange (HG/T20592 RF)
JPD1255/ (2.5/1.8)125515061.82.575
JPD1435/ (2.2/1.6)143517221.62.280
JPD1620/ (2.0/1.5)162019441.5285
JPD1820/ (1.8/1.3)182021841.31.890
JPD2015/ (1.6/1.2)201524181.21.695
JPD2250/ (1.4/1.0)2250270011.4100
JPD2480/ (1.2/0.9)248029760.91.2105
JPD3050/ (1.0/0.8)30501443660173 0.81.0 95DN50 Flange (HG/T20592 RF)
JPD3380/(0.9/0.7)338040560.70.9100
JPD3720/ (0.8/0.6)372044640.60.8105
Duplex or Triplex head is available.
