Plunger metering pump

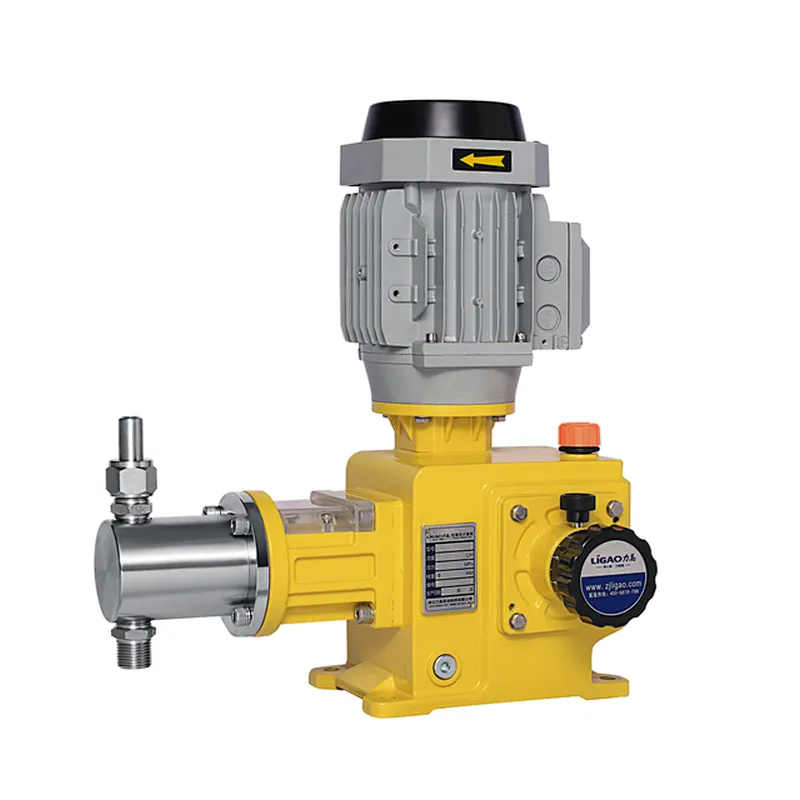

JPX Plunger metering pump

Categories: Metering Pump
Model NO.: JPX
JPX serial plunger metering pump
Main Features
  • JPX serial plunger metering pump max pressure up to 40Mpa
  • JPX serial plunger metering pump presicion error wihtin 1%
  • JPX serial  plunger metering pump visocity up to 2000cps
  • JPX serial  plunger metering pump plunger is made of ceramic  or SS316 coated with ceramic
  • Heat jacke or cooling jacket is available for JPX serial  plunger metering pump
  • All model of JPX serial  plunger metering pump can be equited with auto stroke controller
Main Parameter
  •  Flow range: 1-230LPH@50Hz/1.2-276LPH@60Hz
  • Pressure range: 1-400 Bar
  • Power:  0.37kw IEC71 B14( 4 pole )Motor
  • Material: SS304; SS316, others on request
Parameter Table
Model50Hz60HzPressure(MPa)Piston SizeStroke
length
 (mm)
Motor Power
(KW)
Connection
Flow
Rate
(L/H)
Pump
Speed
(SPM)
Flow
Rate
(L/H)
Pump
Speed
(SPM)
Dia
 (mm)
JPX1/401961.2 115 406100.37DN6
union for welding
JPX2/4022.4 40620
JPX5/335338
JPX8/2189.6 2110
JPX12/151214 1512
JPX20/82024 816DN10
union for welding
JPX33/53340 520
JPX52/3.35262 3.325
JPX65/2.66578 2.628
JPX88/2.188106 2.132
JPX105/1.7105126 1.735
JPX125/1.4125150 1.438DN15
union for welding
JPX155/1.1155186 1.142
JPX190/1.1190144228 173 1.138
JPX230/1.0230276 142
