high pressure plunger pump
high pressure plunger pump

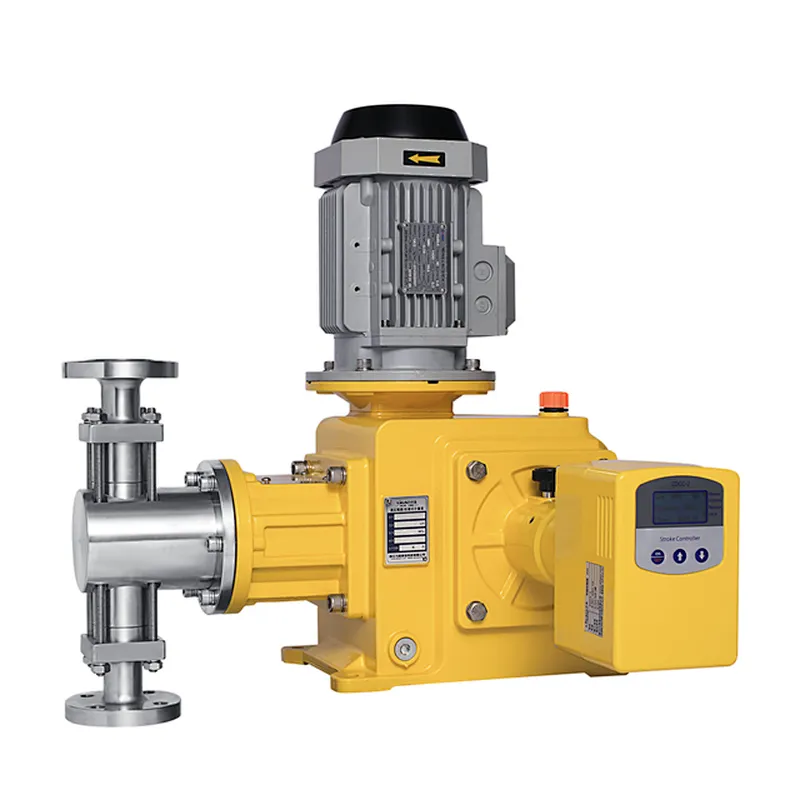

high pressure plunger pump with controller

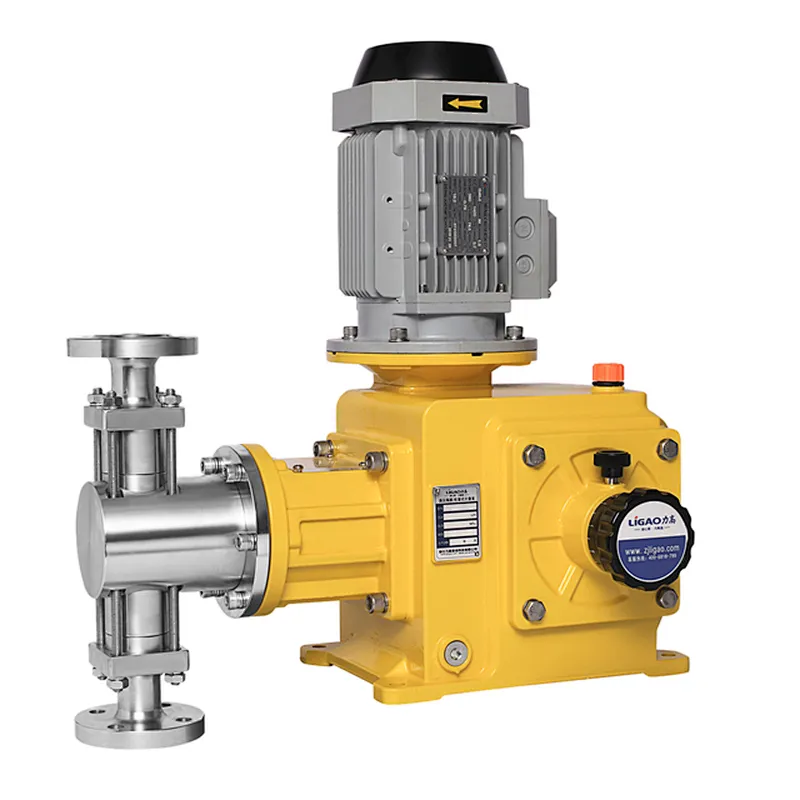

JPR pressure plunger pump

Categories: Metering Pump
Model NO.: JPR
JPR high pressure plunger pump
Main Features
  • High pressure plunger pump: max pressure up to 50Mpa
  • High pressure plunger pump accurancy: the presicion error wihtin 1%
  • High pressure plunger pump visocity:  up to 2000cps
  • High pressure plunger pump plunger:  ceramic  or SS316 coated with ceramic
  • High pressure plunger pump options: Heat jacke or cooling jacket is available
  • All model can be equited with auto stroke controller
Parameter Table
Model50Hz60HzPressure(MPa)Piston SizeStroke
length
 (mm)
Motor Power
(KW)
Connection
Flow
Rate
(L/H)
Pump
Speed
(SPM)
Flow
Rate
(L/H)
Pump
Speed
(SPM)
Dia
 (mm)
JPR18/50189622 115 5012301.5DN10
union for welding
JPR32/313238 3116
JPR52/205262 2020
JPR80/128096 1225
JPR100/10100120 1028
JPR135/8135162 832DN15
union for welding
JPR160/6.5160192 6.535
JPR190/5.5190228 5.538
JPR232/4.5232278 4.542
JPR268/4.0268322 445
JPR332/3.2332398 3.250
JPR400/2.5400480 2.555DN25 Flange
(HG/T20592 RF)
JPR480/2.2480576 2.260
JPR565/1.8565678 1.865
JPR655/1.6655786 1.670
JPR750/1.4750786 1.475
JPR855/1.28551026 1.280DN40 Flange (HG/T20592 RF)
JPR965/1.09651158 1.0 85
JPR1080/0.910801296 0.990
JPR1280/0.912801441536 173 0.980
JPR1450/0.814501740 0.885
JPR1620/0.716201944 0.790
Duplex or Triplex head is available.
