chemical metering pump

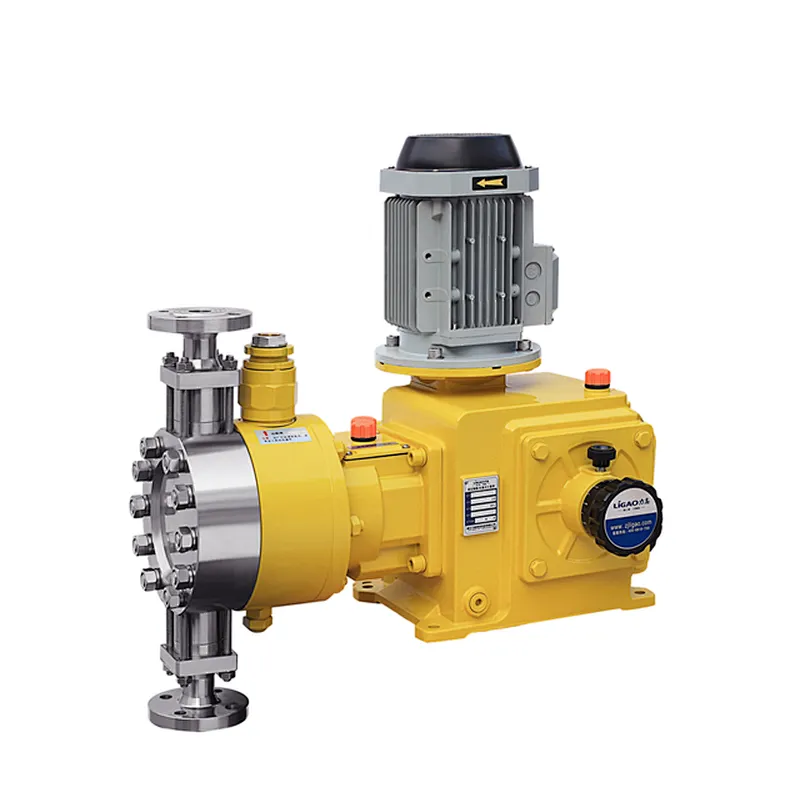

JYPR chemical metering pump

Categories: Metering Pump
Model NO.: JYPR
JYPR chemical metering pump
Main Features
  • JYPR chemical metering pump max pressure up to 60Mpa
  • JYPR chemical metering pumppresicion error wihtin 1%
  • JYPR chemical metering pump can transfer liquid temperature -20℃ to 100℃
  • Heat jacke or cooling jacket is available for JYPR chemical metering pump
  • JYPR chemical metering pump includng internal safety valve
  • All model of JYPR chemical metering pump can be equited with auto stroke controller
  • Double diaphragm with leakage detection is optional for JYPR chemical metering pump
Main Parameter
  •  Flow range: 10-1600LPH@50Hz/12-1920LPH@60Hz
  • Pressure range: 1-700 Bar
  • Power:  1.5kw IEC90 B5 (4 Pole )Motor
  • Material: SS304; SS316, others on request
Parameter Table
Model50Hz60HzPressure(MPa)Piston SizeStroke
length
 (mm)
Motor Power
(KW)
Connection
Flow
Rate
(L/H)
Pump
Speed
(SPM)
Flow
Rate
(L/H)
Pump
Speed
(SPM)
Dia
 (mm)
JYPR10/70109612 115 7010301.5DN6
union for welding
JYPR15/561518 5612
JYPR30/323036 3216DN10
union for welding
JYPR46/234614455 173 2316
JYPR60/186072 1818
JYPR75/157590 1520
JYPR92/12.592110 12.522
JYPR120/9.5120144 9.525
JYPR175/6.5175210 6.530DN15
union for welding
JYPR200/5.8200240 5.832
JYPR252/4.5252302 4.536
JYPR315/3.7315378 3.740
JYPR400/3.0400480 345DN25 Flange
(HG/T20592 RF)
JYPR500/2.4500600 2.450
JYPR600/2.0600720 255
JYPR720/1.7720864 1.760
JYPR830/1.4830996 1.465
JYPR960/1.29601152 1.270DN40 Flange
(HG/T20592 RF)
JYPR1100/1.011001320 175
JYPR1250/0.912501500 0.980
JYPR1420/0.814201704 0.885
JYPR1600/0.716001920 0.790
Duplex or Triplex head is available.
